| ชื่อแบรนด์: | HUAAO |
| เลขรุ่น: | HE003 |
| ขั้นต่ำ: | 100㎡ |
| ราคา: | US$8-9.2/㎡ |

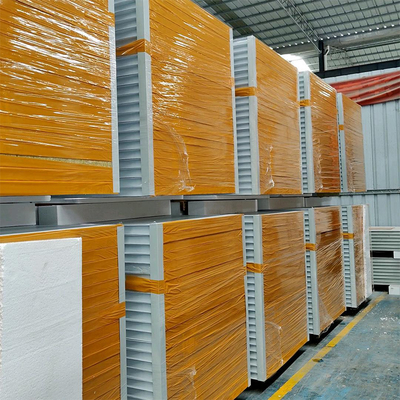

| รายละเอียดการบรรจุ: | 1. การป้องกันโฟม 2. เฟรมไม้รองรับ 3. การโหลดรถยกและการขนถ่าย 4. การโหลดคอนเทนเนอร์ |
| เงื่อนไขการจ่ายเงิน: | l/c, t/t, d/a, d/p, t/t |

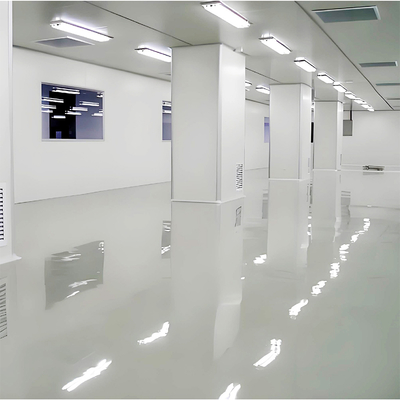

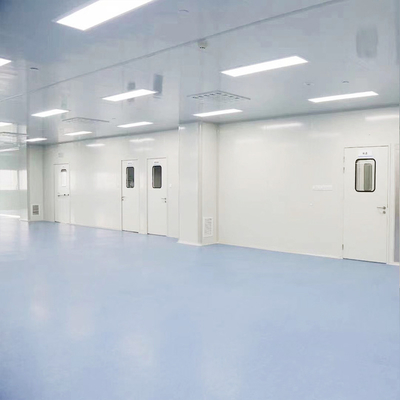

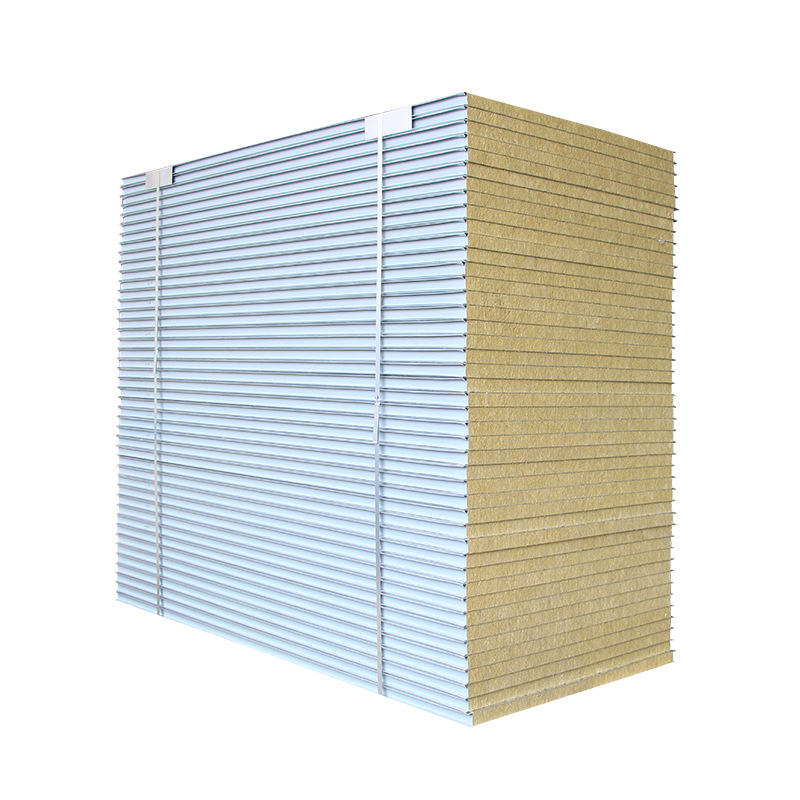

This product is a high-density rock wool core sandwich panel from Huaao, designed specifically for constructing the walls of dust-free workshops and other industrial facilities where fire safety, thermal insulation, and superior soundproofing are critical requirements.
Critical Conclusions:
Material is Ideal for Stated Use: Rock wool is arguably the best core material for this combination of needs. Its non-combustible (A1 fire rating) nature makes it a safe choice for industrial settings, and its soundproofing capabilities are a major advantage over other insulation types.
"Dust-Free" Application is Achievable: The steel-faced panels provide a smooth, non-shedding, and cleanable surface. However, achieving a truly "dust-free" environment depends just as much on the quality of the installation (ensuring all seams and penetrations are perfectly sealed) as it does on the panels themselves.
"High-Density" is a Key Spec: This is not just a marketing term; it directly translates to better structural performance, durability, and acoustic properties. A buyer should request the exact density value (e.g., 100kg/m³).
Omitted Specification: The description lacks the fire rating certificate (e.g., EN 13501-1 Class A1) and the thermal conductivity (Lambda value - λ), which are essential for technical evaluation.
| Attribute | Value |
|---|---|
| Panel Sheet Material | Galvanized steel |
| Product Name | MGO/Rockwool/Silica/PU/Foam sandwich panel |
| Type | Machine-made panel |
| Panel Sheet Thickness | 0.376; 0.426; 0.476; 0.526 mm |
| Panel Thickness | 50mm, 75mm, 100mm,Customized |
| Width | 950mm ,980mm, 1180mm |
| Length | Customized |
| Core Material | MGO/Rockwool/Silica/PU/Foam sandwich panel |
| Color | Customized |
GMP impact resistant MGSO sandwich panel is a specialized clean room wall panel solution for food factories and hospital buildings. This innovative panel features a core material made from magnesium sulfate and magnesium oxide using lamination technology, creating an environmentally friendly product with superior performance characteristics.
| Type | Mechanism panel |
| Width | 950mm, 1150mm |
| Model | HE003 |
| Fire Rating | 60min (A1 grade) |
| Available Colors | Blue, off-white, green |

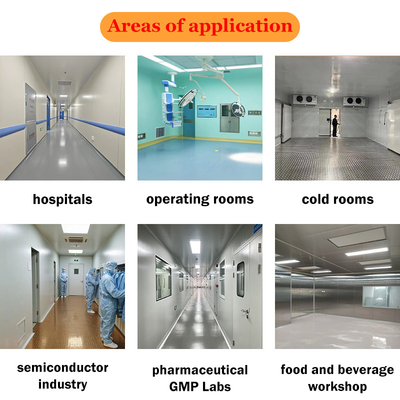

Ideal for various high-cleanliness environments including:
|
